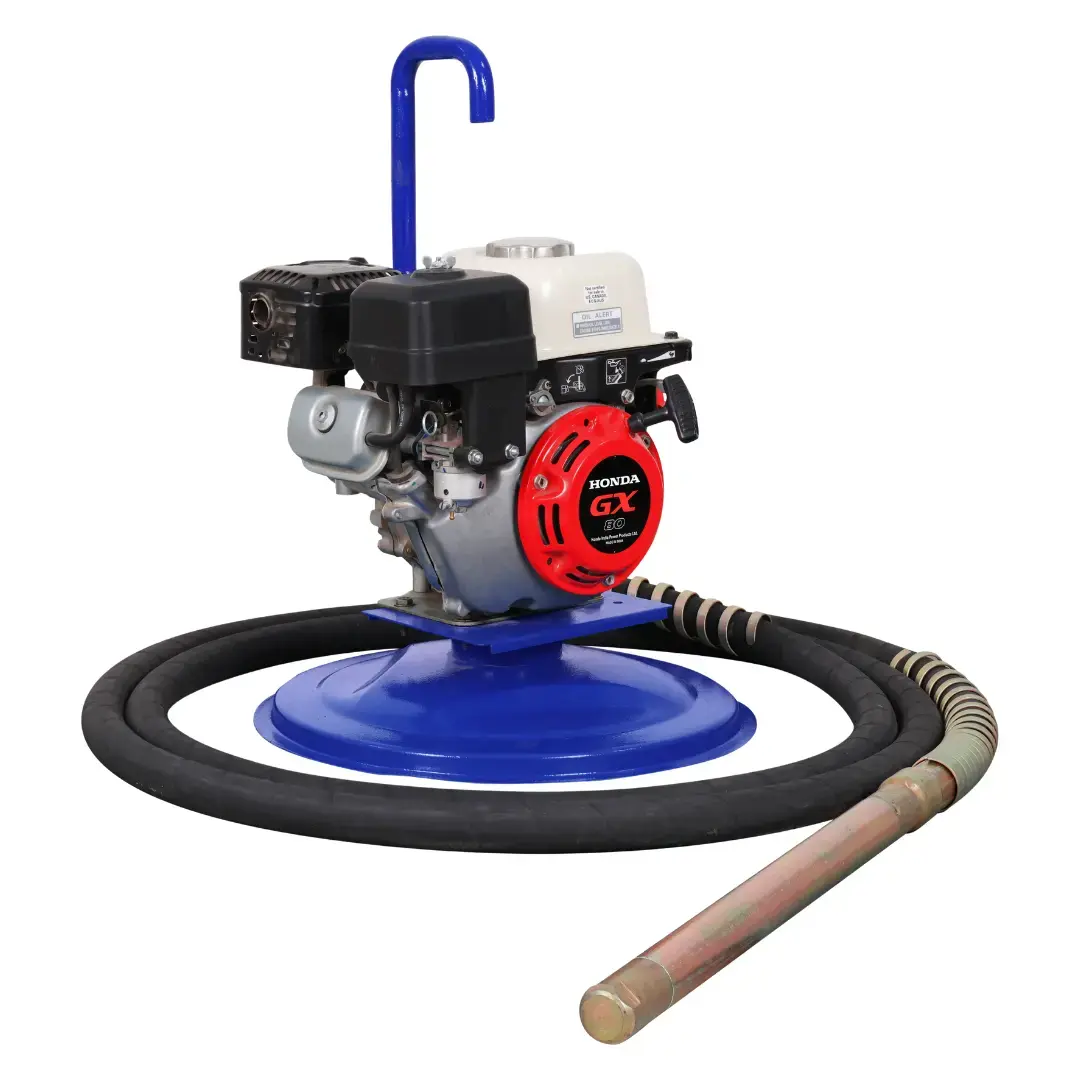

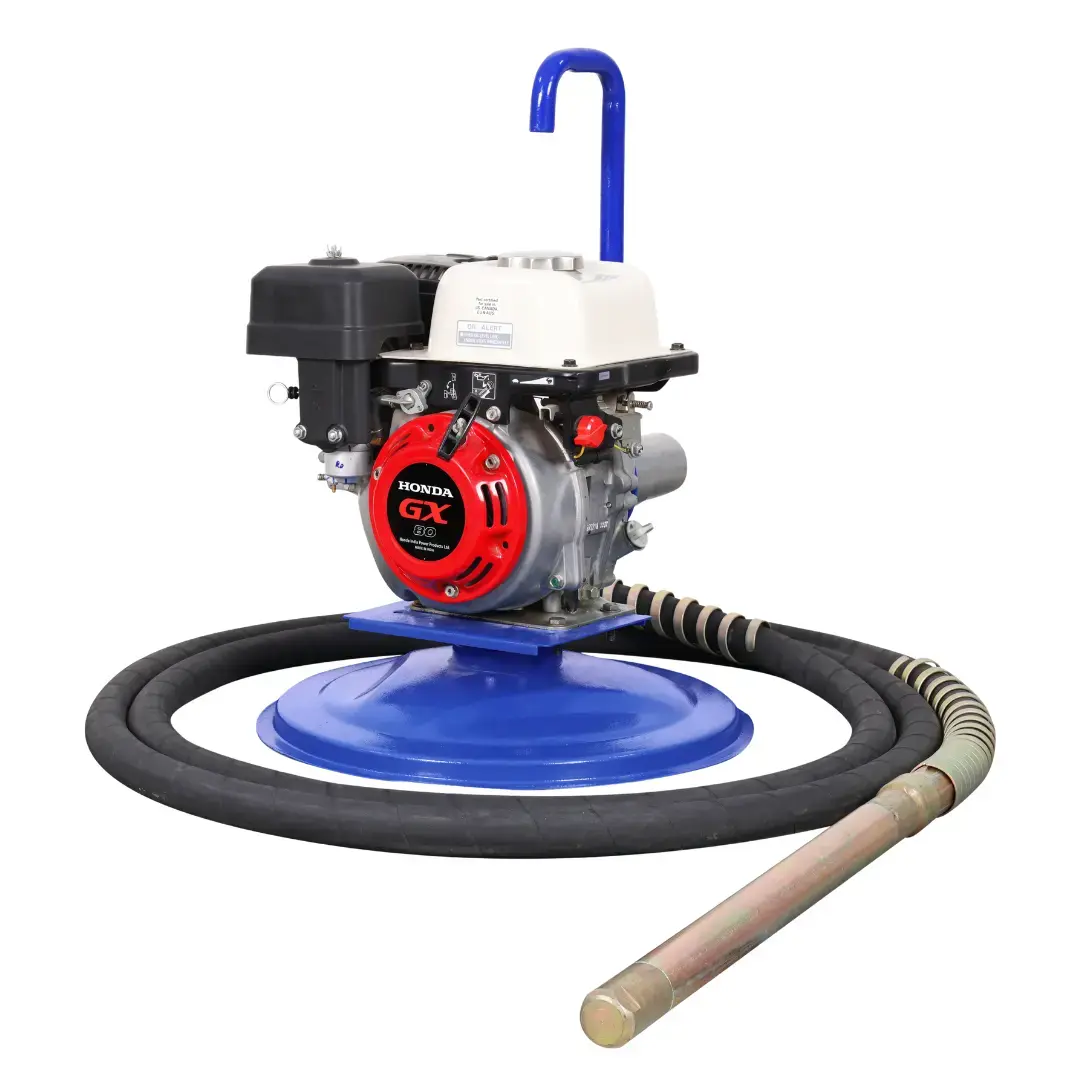

CV40-80 WITH GX80

Needle Dia. (mm)40Flexible Shaft Length (m)6Base Plate Revolving (Steel Frame)

Engine model GX80

Engine type4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°

Net Power kW (hp) @ RPM1.5 ( 2.0 ) @ 3600

Fuel type Unleaded Petrol

Engine oil capacity (L)0.36

Recommended oil grade SAE 10W-30 API SE or higher

Cont. rated power kW (hp) @ RPM1.2 ( 1.6 ) @ 3600

Compression ratio9.0:1

Bore X Stroke (mm)46 x 48

Fuel cons. at cont. rated power (L/h @ RPM)0.6 @ 3600

Ignition System Transistor Type Magneto Ignition

Engine Weight Dry (kg)11.1

Dimensions L x W x H (mm) 275 x 342 x 323

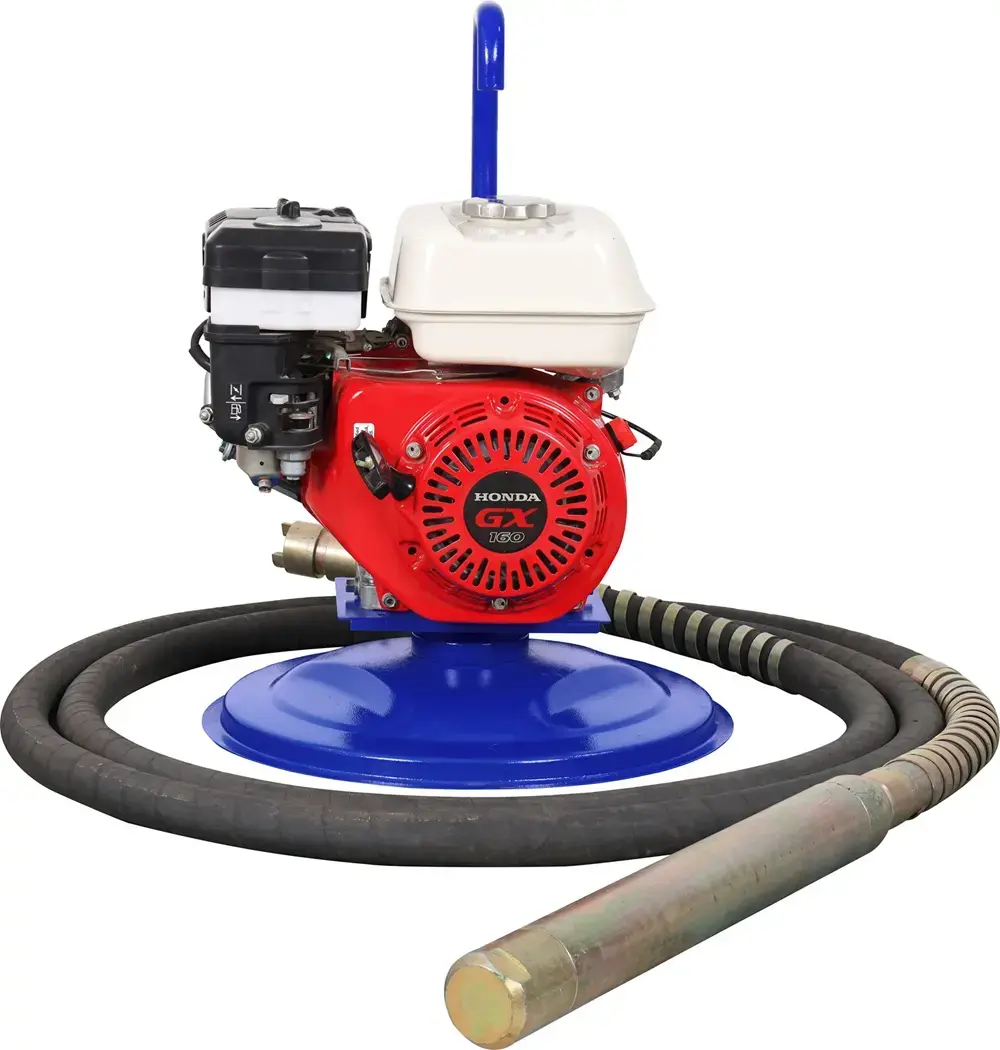

CV60-160 WITH GX160

Needle Dia. (mm)60

Flexible Shaft Length (m)6

Base Plate Revolving (Steel Frame)

Engine model GX160

Engine type4-stroke, OHV, single cylinder, Air cooled engine inclined by 25°

Net Power kW (hp) @ RPM3.6 ( 4.8 ) @ 3600

Fuel typeUnleaded Petrol

Fuel tank capacity (L)3.1

Engine oil capacity (L)0.6

Recommended oil gradeSAE 10W-30 API SE or higher

Cont. rated power kW (hp) @ RPM2.5 ( 3.4 ) @ 3000, 2.9 ( 3.9 ) @ 3600

Compression ratio 9.0 : 1

Bore X Stroke (mm)68 x 45

Fuel cons. at cont. rated power (L/h @ RPM)1.4 @ 3600

Ignition SystemTransistor Type Magneto Ignition

Engine Weight Dry (kg) 15.1
