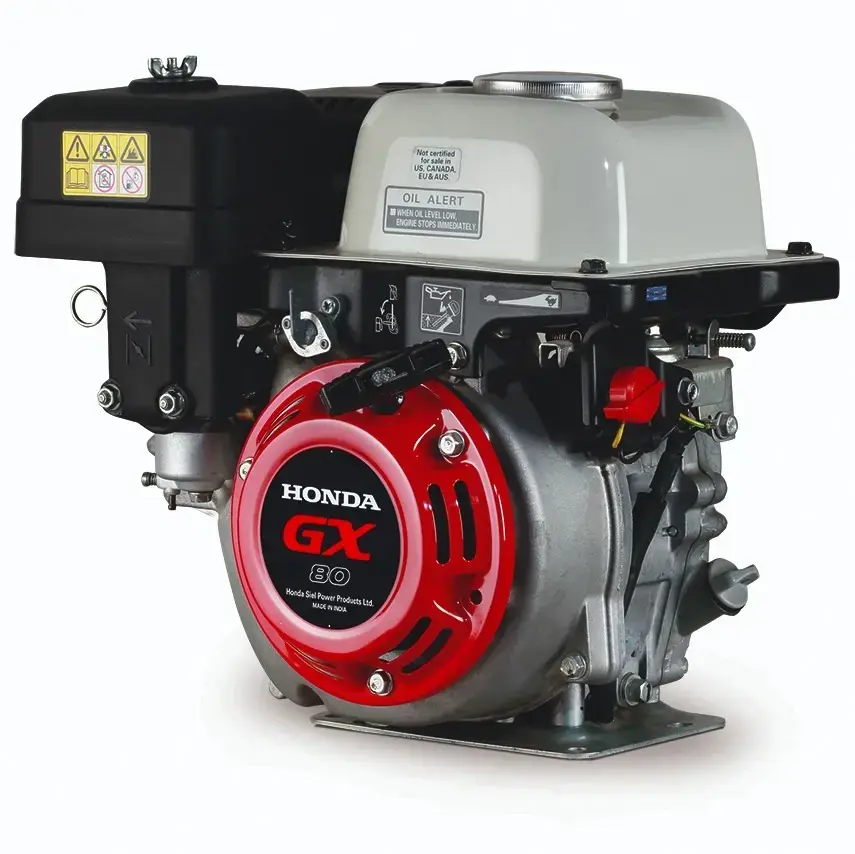

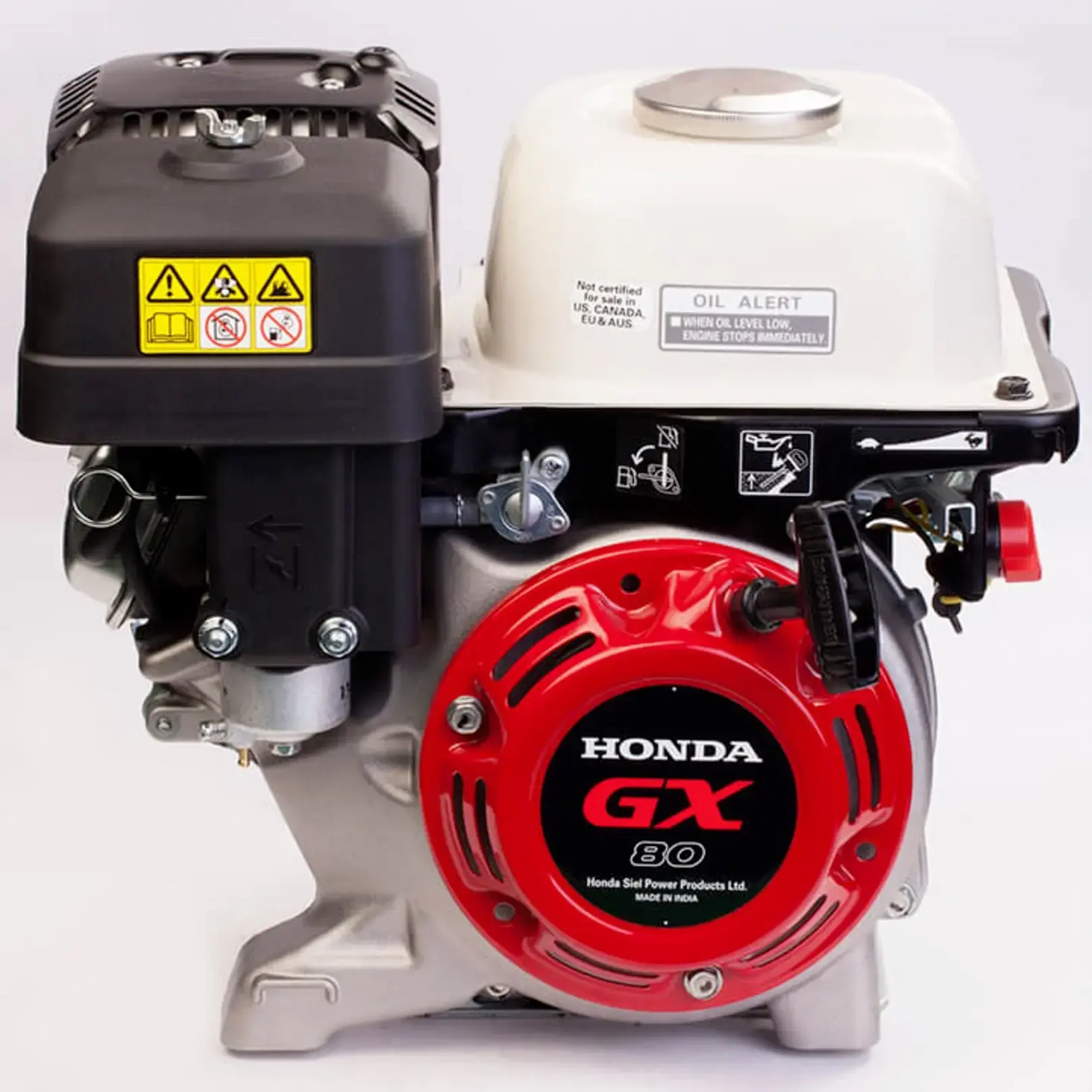

Engine model GX80

Engine type 4-stroke single cylinder, OHV petrol engine, 25° inclined cylinder, Horizontal shaft

Displacement (cc) 79.7

Net Power kW (hp) @ RPM 1.5 ( 2.0) @ 3600

Maximum Torque (N•m / RPM) 4.5 @2500

Fuel type Unleaded Petrol

Lubrication system Splash

Recommended oil grade SAE 10W30

Fuel tank capacity (L) 1.5

Starting system Recoil (Electric Start optional)

Air cleaner Dual Type

Compression ratio 9 : 1

Bore X Stroke (mm) 46 x 48

Fuel cons. at cont. rated power (L/h @ RPM) 0.6 @ 3600

Ignition System Transistor Type Magneto Ignition

Carburettor Type Horizontal Type, Butterfly Valve

Engine oil capacity (L) 0.36

Oil Alert Available

Cylinder sleeve type Cast Iron Sleeve

Engine Dry Weight (kg) 11.1

Engine Wet Weight (kg) 12.5

Dimensions L x W x H (mm) 275 x 342 x 323
